L10cs Classic Series Subwoofer

Details
Variations

10-inch (250mm) Down Firing Powered Subwoofer




대량 구매 문의는 : 이곳을 클릭하세요

L10cs Classic Series Subwoofer

10-inch (250mm) Down firing Polycellulose woofer

L10cs Classic Series Subwoofer

Advanced 250W RMS (500W Dynamic) Amplifier

L10cs Classic Series Subwoofer

Black and Natural Walnut Real Wood Veneer

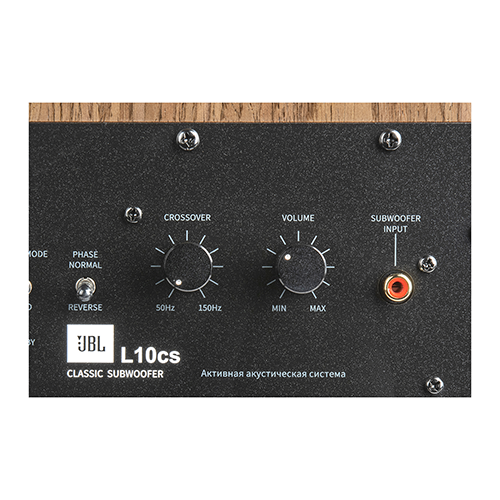

Low Pass Crossover and Gain controls with selectable Phase switch

Low Pass Crossover and Gain controls with selectable Phase switch

Auto On/Off

Auto On/Off

L10cs Classic Series Subwoofer

With a 250W RMS built in amplifier driving the 10-inch (250mm) down firing woofer, the L10cs is sure to provide plenty of low frequency support to a wide variety of audio systems. From 2 channel loudspeakers and Integrated music systems to home theater, the L10cs adds depth to music, and impact to movies and video games. Available in Natural and Black Walnut, the L10cs complements a wide variety of JBL loudspeakers and seamlessly blends with your décor.

품목 # JBLL10CSWALAS

일반 사양

Low-frequency Transducer 10-inch (250mm) Polycellulose Cone Woofer
Amplifier Power 250W RMS
Frequency Response 32Hz - 150Hz
Crossover Frequencies 50Hz – 150Hz (variable) 24dB/octave
Controls Auto Power, Crossover, Output Level, Phase, AC Voltage Selection
Connections LFE (RCA-type)
Enclosure Type Bass-Reflex via Rear-Firing Tuned Ports
Power Requirement 120V, 60Hz (USA); 220V -240V, 50/60Hz (EU) - Selectable via switch
Power Consumption (Idle/Full/Power) <0.5W (standby) / 335W/2A (max – 230V) / 335W/4A (max – 120V)
Cabinet Finish Black Walnut Wood Veneer
Dimensions (H x W x D) 15.4-inch x 13.3-inch x 15.6-inch
Weight 31lbs (14.1kg)
Click here for a complete list of all specs for this product
