JBL L42ms Music System

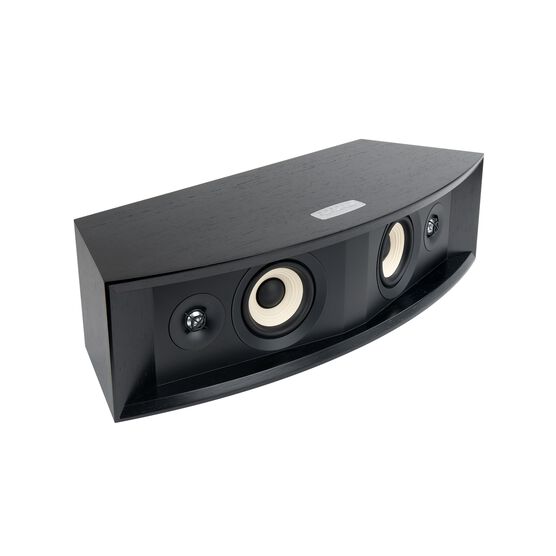

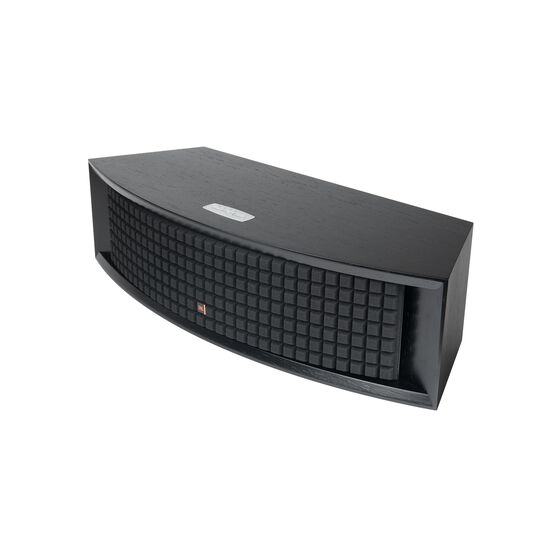

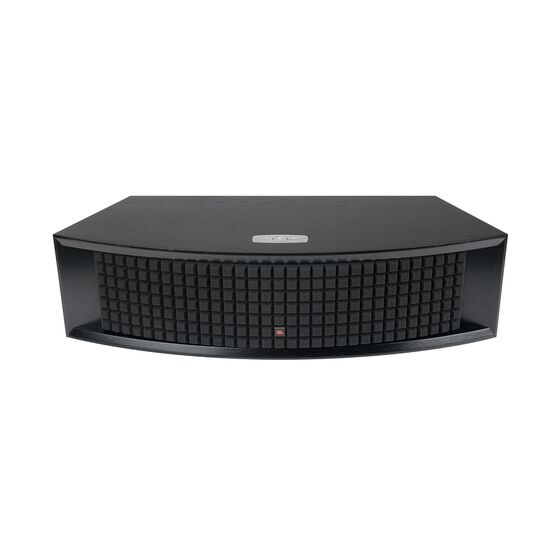

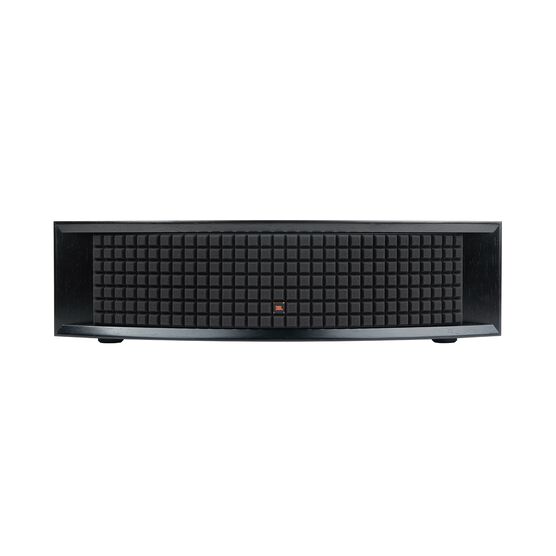

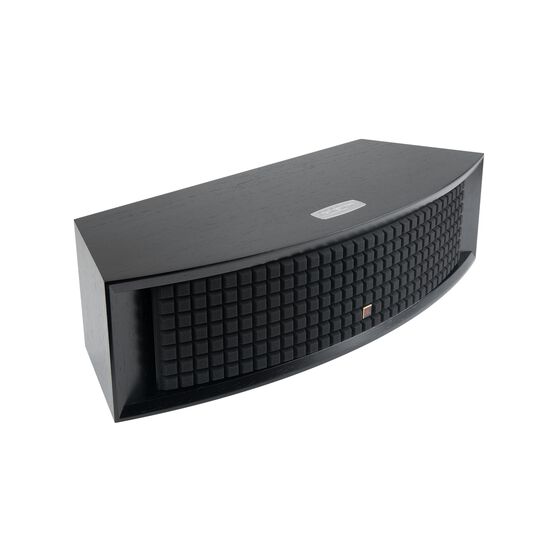

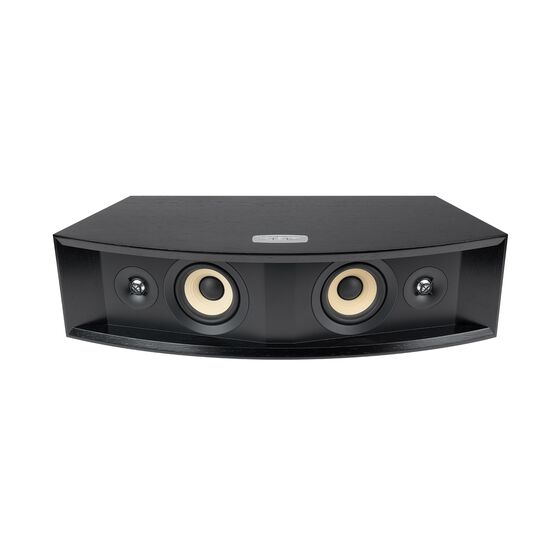

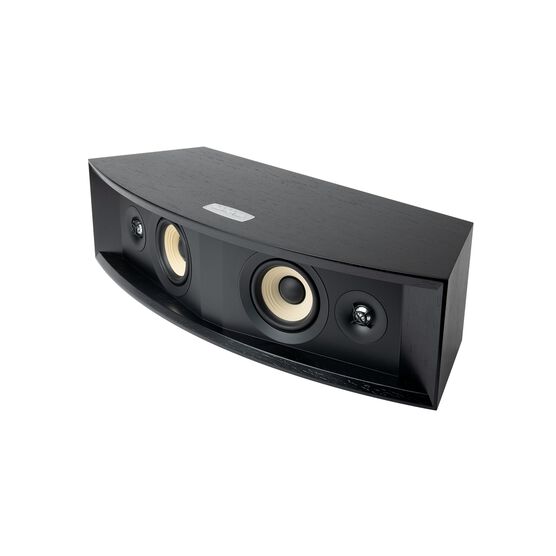

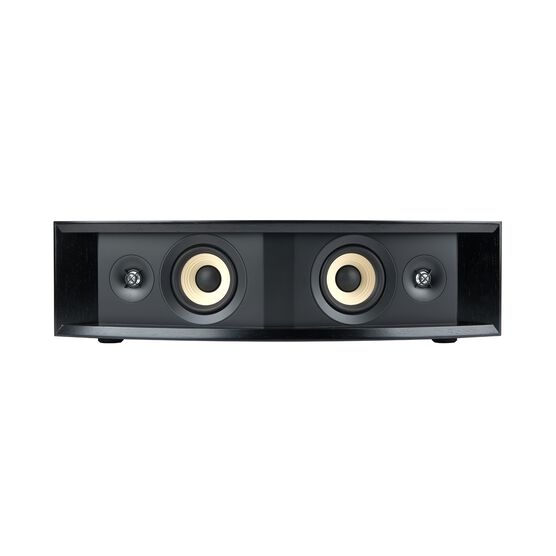

The JBL L42ms is an Integrated Music System that was designed to fit today’s entertainment lifestyle by showcasing the iconic sound of a pair of JBL loudspeakers in a single cabinet system. Behind the iconic JBL Quadrex grille are a pair of dual 4-inch (100mm) woofers and dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides positioned to the left and right to create a wide and even sound-field. On the outside, the L42ms comes with a stylish curved grille, tapered side edges, and is available in the classic JBL real wood veneer finishes of Black Walnut or Natural Walnut.

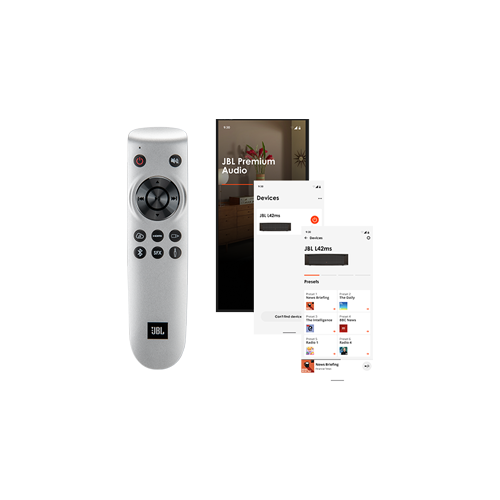

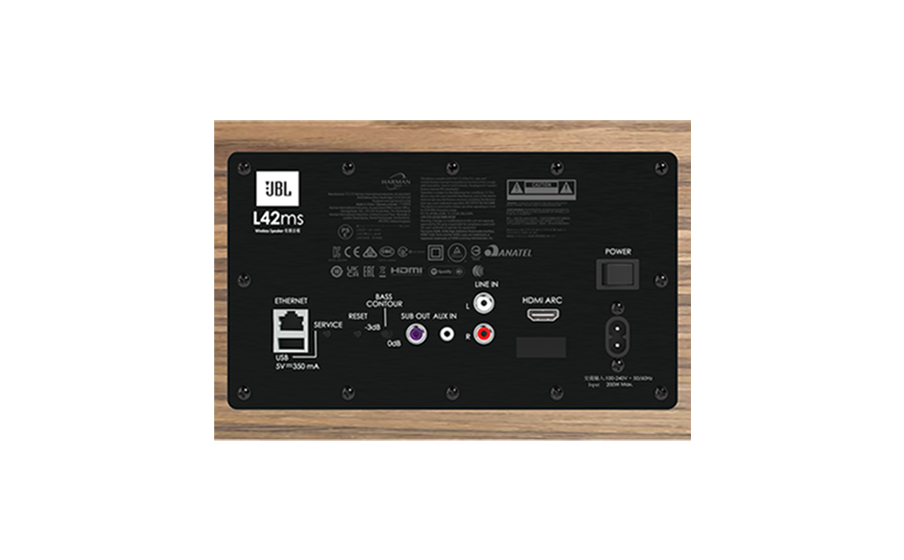

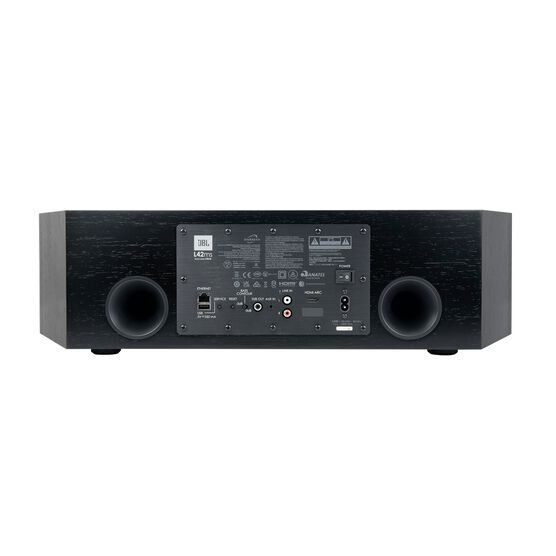

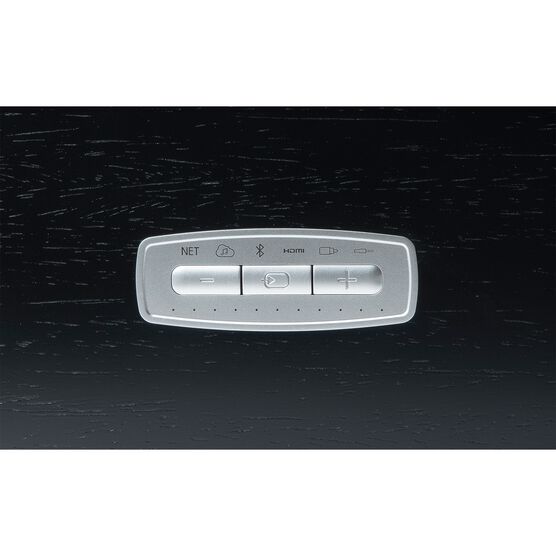

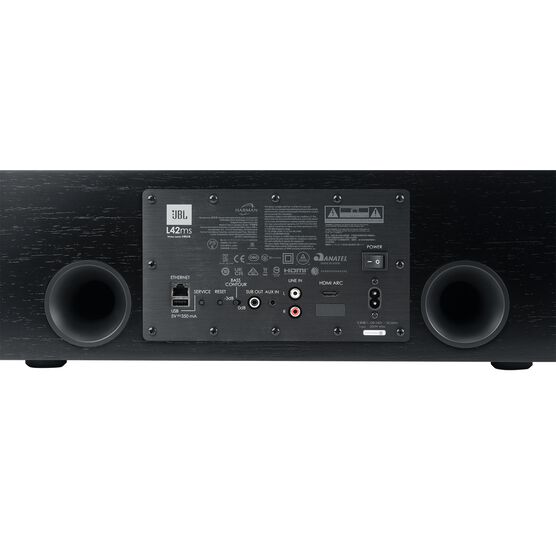

Audio connections include two sets of analog stereo inputs (one pair RCA style and one 3.5mm input) along with one HDMI-ARC for connection to a TV with similar connection for audio signal and control. Additionally, the L42ms can play streamed content via a wired or wireless network connection via Spotify Connect, Apple Airplay2™, and Google Chromecast or connect to a device directly via Bluetooth. All audio signals are routed through an advanced DSP engine where the content is carefully contoured and output to the speakers via a four-channel amplifier delivering 75W RMS to each woofer and 25W RMS to each tweeter. The total system’s 200W RMS amplifier power can be controlled via a touch panel located on the cabinet top panel, included Bluetooth remote, or from one of many music or automation apps.

Designed and Engineered at the Harman Center of Acoustics Excellence in Northridge, California, the L42ms leverages JBL’s past 75+ years of loudspeaker and electronic designs to deliver truly outstanding sound and convenience while outperforming most traditional component hi-fi systems in the process. With its incredible combination of style, size, and performance, there is simply nothing like the L42ms Music System.

품목 # JBLL42MSBLKAS

일반 사양

Type Compact Integrated Music System
Low Frequency Dual 4-inch (100mm) Pure Pulp white cone woofers
High Frequency Dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides
Amplifier Power 200W RMS Class D Total System Power, 4-Channel Amplification with 75W RMS to each woofer + 25W RMS to each tweeter Configured for Stereo Reproduction
Frequency Response 55Hz-25kHz (-6dB)
Crossover Frequency 5kHz
Maximum SPL 102dB @ 1m
Sound Controls Speaker placement boundary compensation
Subwoofer Output Autosensing w/ Auto-engage of 80Hz High Pass Filter
Wireless Inputs WiFi streaming
Wired Inputs HDMI ARC
Supported Digital Audio Sample Rates (PCM 2CH) Streaming
Bluetooth Audio Version 4.2 Profiles, SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
Remote Control Type BTLE Wireless
Grille Black foam Quadrex grille
Enclosure Front-ported tabletop style cabinet available in black walnut or natural walnut furniture-grade wood veneer
Net Speaker Dimensions (HxWxD) 6.4" x 24.3" x 9.2" (162mm x 617mm x 234mm)
Net Product Weight 26.3 lbs. (11.9kg)
Shipping Unit of Measure Each
Gross Shipping Dimensions (HxWxD) 11.1” x 27.0” x 14.2” (283mm x 685mm x 360mm)
Gross Shipping Weight 34.3 lbs (15.6 kg)
AC Input Voltage 100 - 240 VAC (+/-10%), 50/60Hz
Click here for a complete list of all specs for this product

Spec Sheet (스팩시트(영어))

Kanuri 363 KB
  • 1x L42ms Integrated Music System
  • 1x Speaker Grille

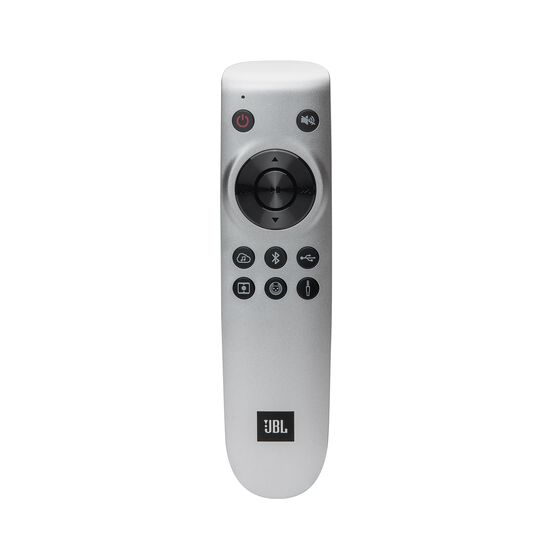

  • 1x RF Remote
  • 1x Safety Booklet
  • AC Power Cord(s) – Qty and Type Vary by Region
