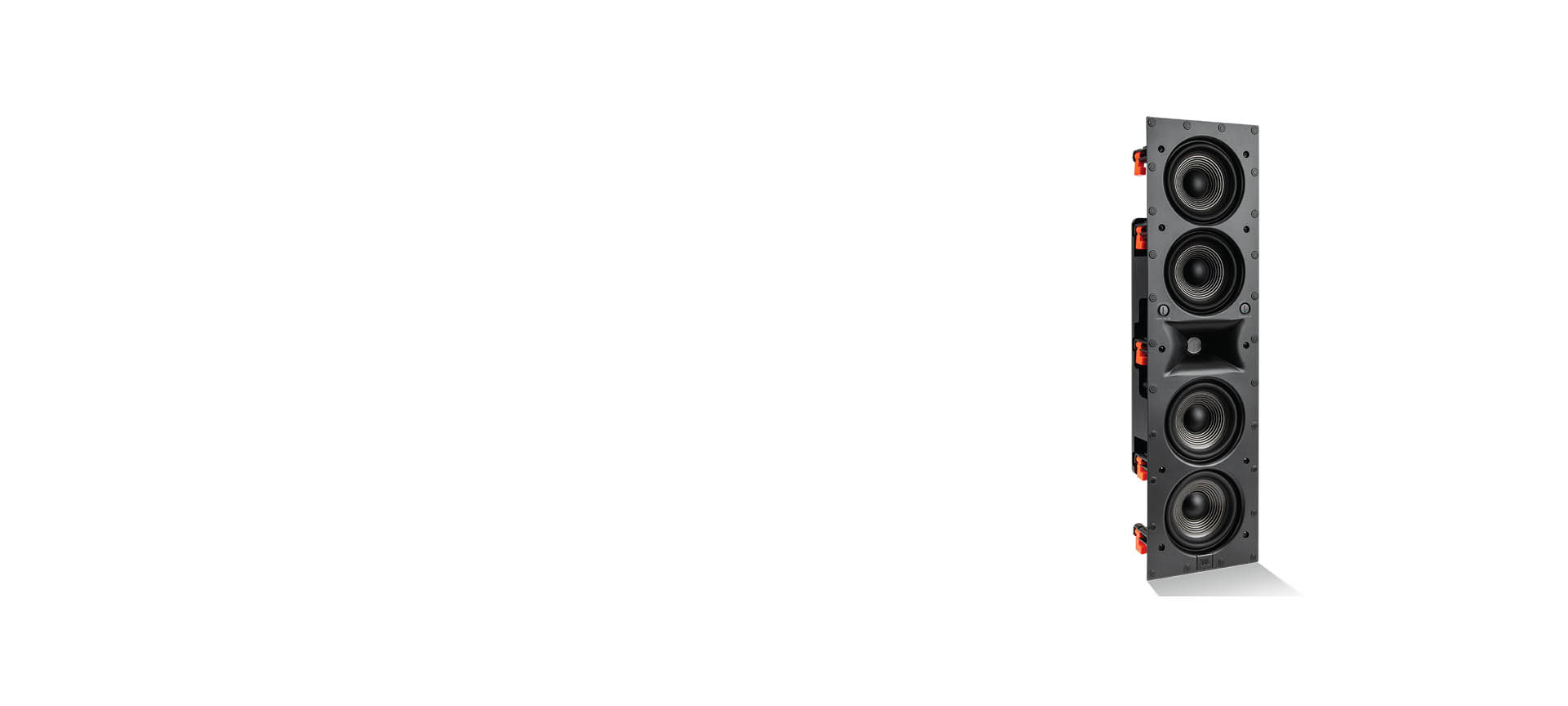

Studio 6 Theater
For next level home theater the Studio 6 Theater utilizes quad 5.25" (130mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide to deliver home theater at its best. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the Studio 6 Theater visually discrete so they blend into the walls seamlessly.
Promotions
Variations

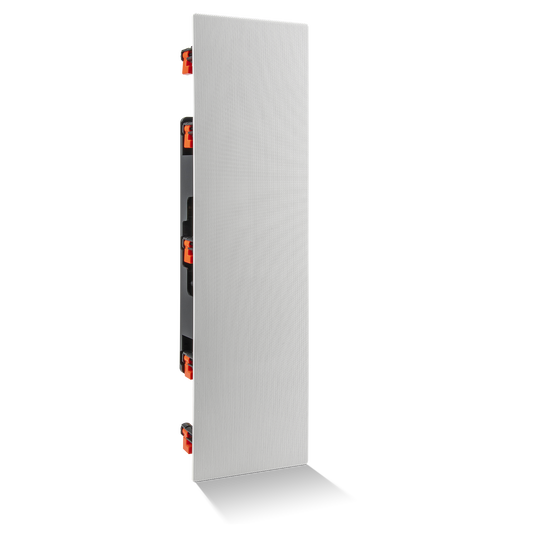

-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Hero")

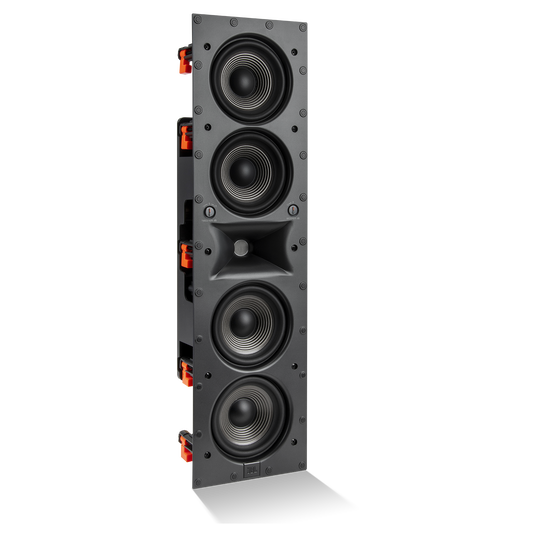

-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Front")

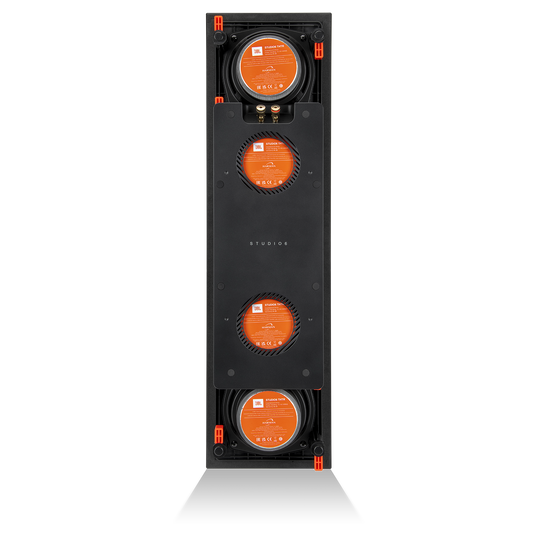

-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Back")

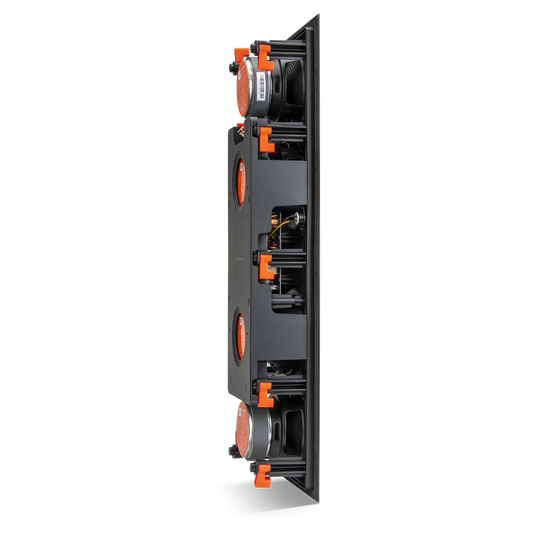

-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Left")

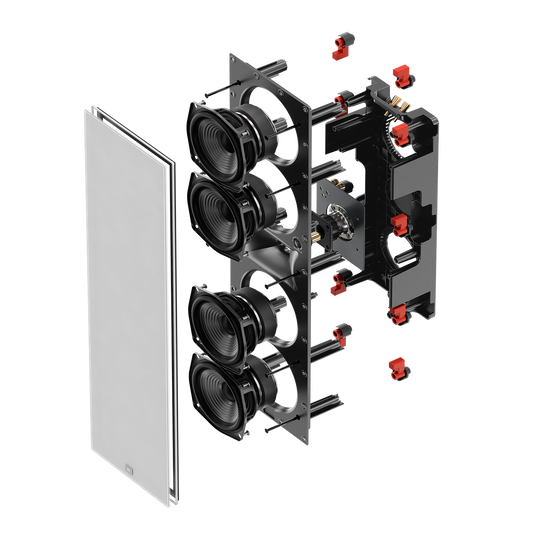

-ExplodedView-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Right")

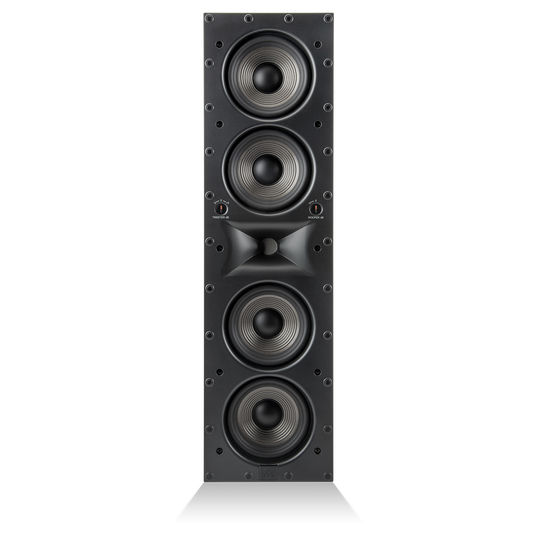

-1605x1605.png?sw=537&sfrm=png "Studio 6 Theater - White - Quad 5.25\" (133mm) 2-way In-Wall Loudspeaker - Top")
Features
_HDI_Waveguide-Web-1920x640.png)

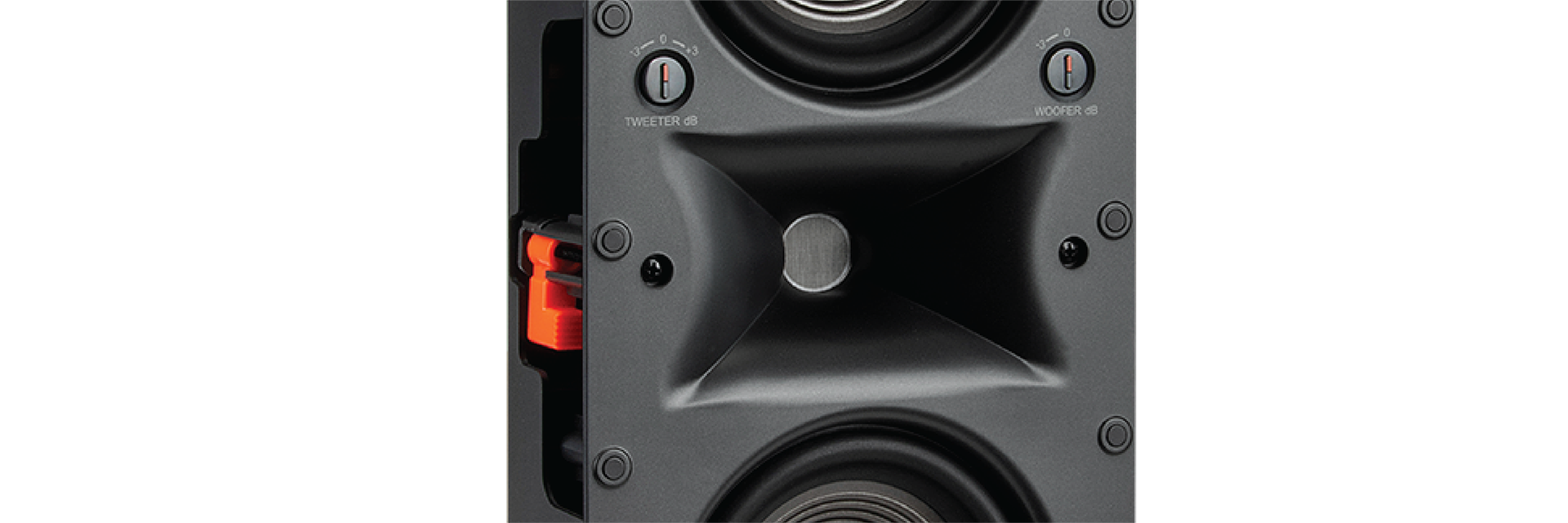

1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
_Polyplas_Cone-Web-1920x640.png)

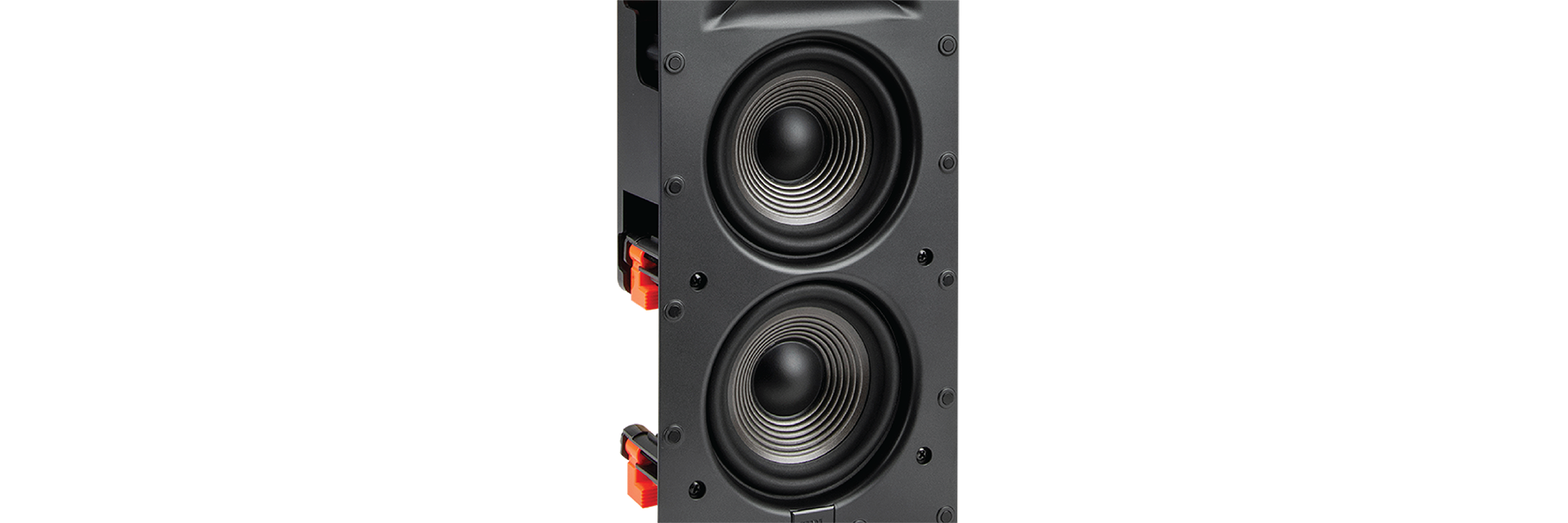

Quad 5.25" (130mm) Polyplas® woofers
_Level_Adjustments-Web-1920x640.png)

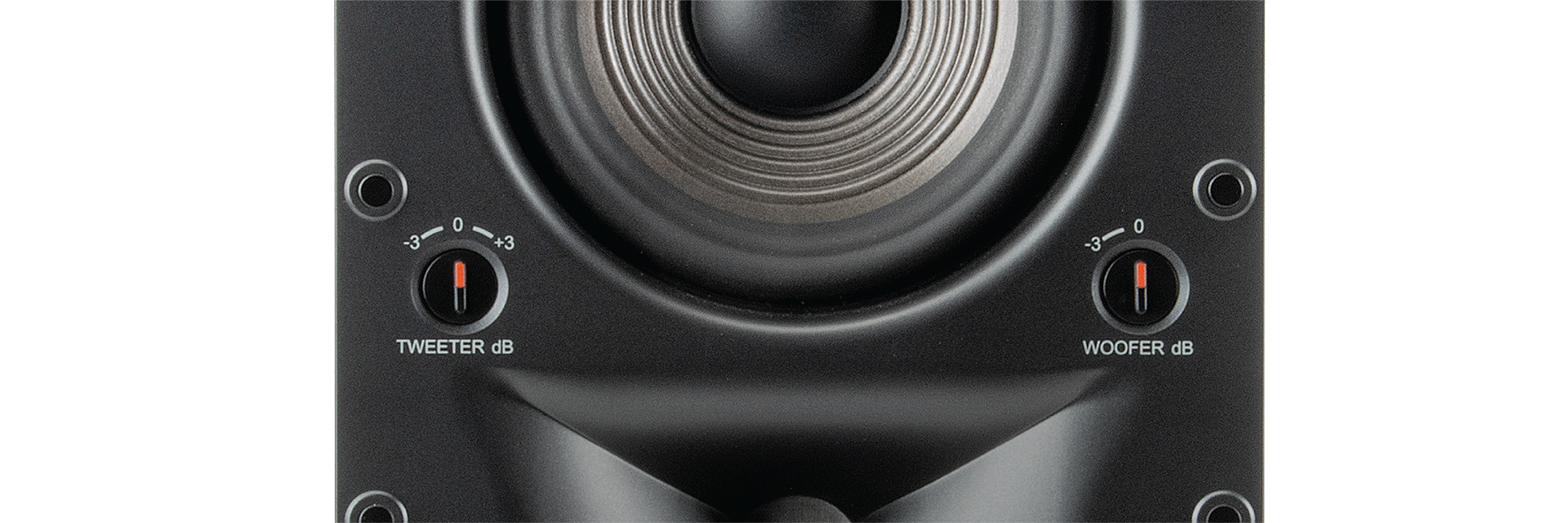

High frequency level adjustment and Low Frequency boundary compensation
_Network-Web-500x500.png)

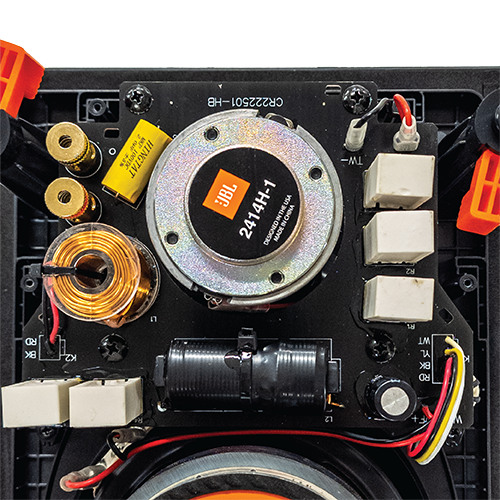

Premium air-core inductors and mylar capacitor crossover network components
DogLegMounting-Web-500x500.png)

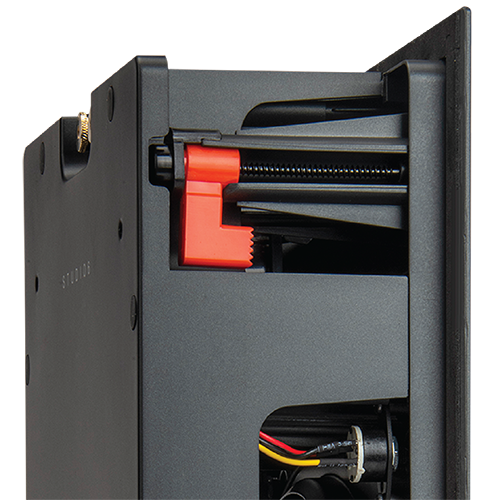

Dog Leg installation system for quick and easy installation
ZeroBezelGrille-Web-500x500.png)

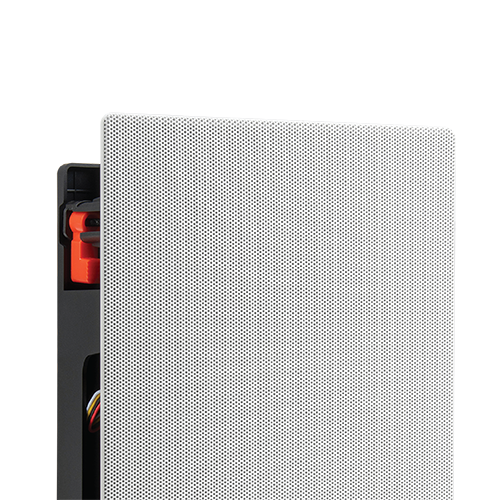

Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance
Specs & Downloads
품목 #: JBLS6THTR
Product Description
Quad 5.25" (133mm) 2-way In-Wall Loudspeaker
For next level home theater the Studio 6 Theater utilizes quad 5.25" (130mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide to deliver home theater at its best. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the Studio 6 Theater visually discrete so they blend into the walls seamlessly.
일반 사양
High Frequency Transducer
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
Quad 5.25" (130mm) Polyplas® woofer
Nominal Impedance
6-Ohm
Sensitivity (2.83V@1m)
96 dB
Power Handling
100W RMS (400W Dynamic)
Recommended Amplifier Power
50 - 150W
Frequency Response
65Hz - 20kHz
Crossover Frequency
2.5kHz
Grille Dimensions (HxW)
7.4" x 26.5" (188mm x 674mm)
Cutout Dimensions (HxW)
6.2" x 25.3" (157mm x 642mm)
Mounting Depth
3.74in (95mm)
