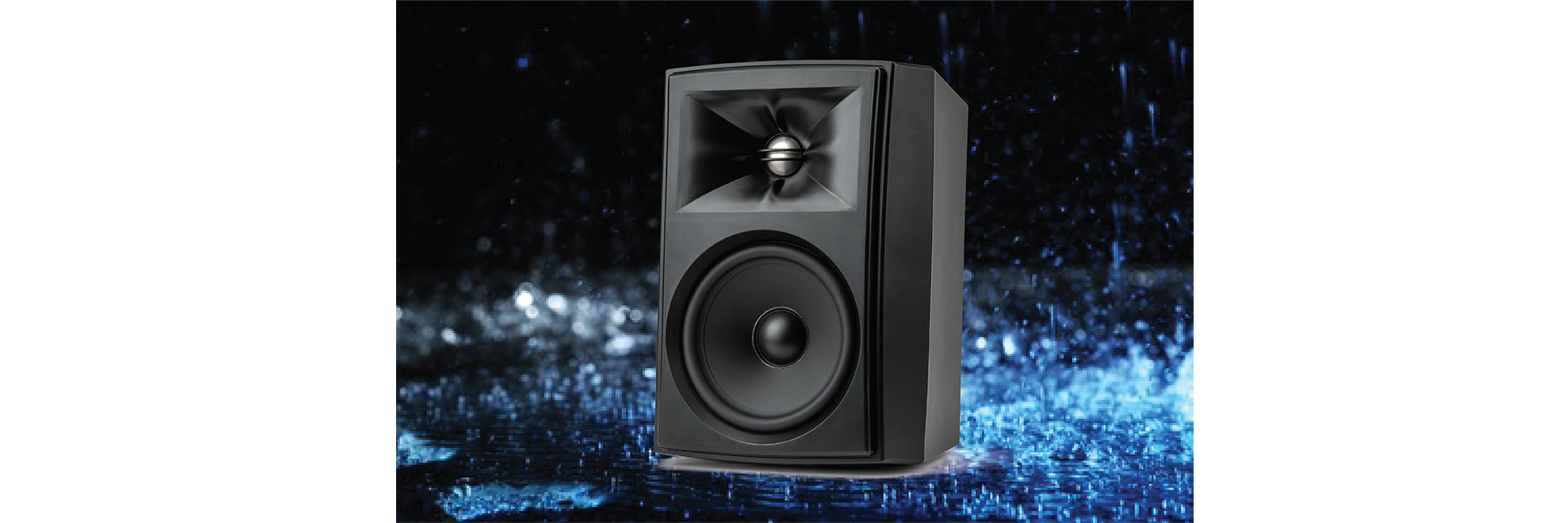

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

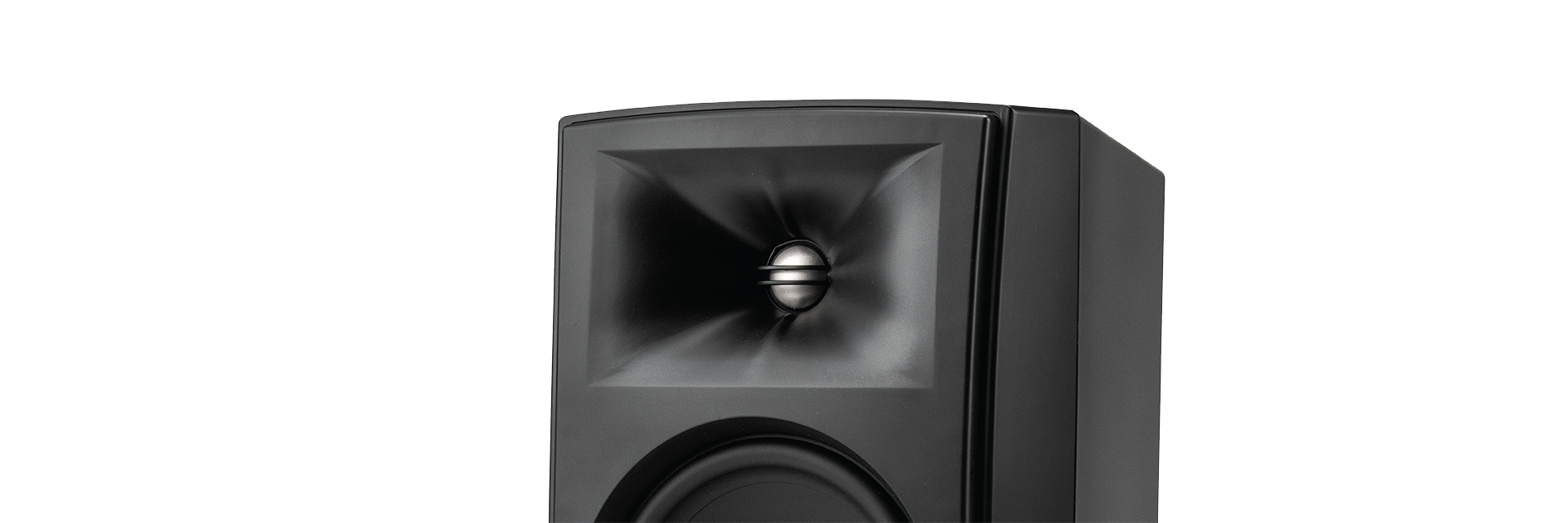

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

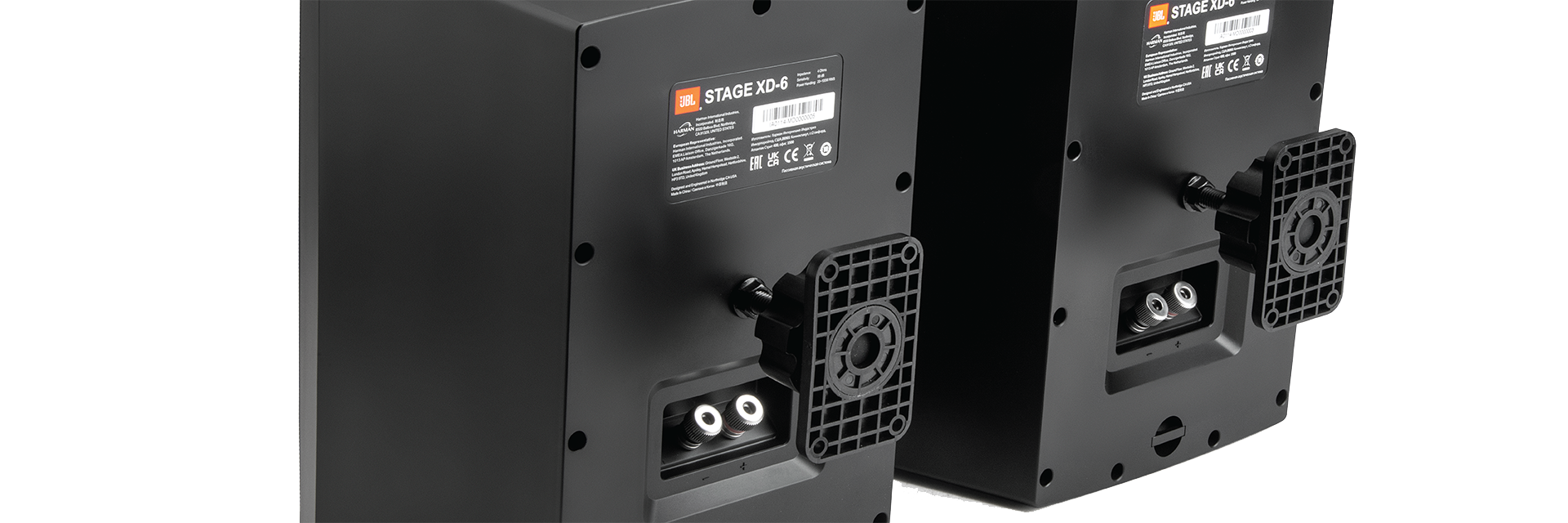

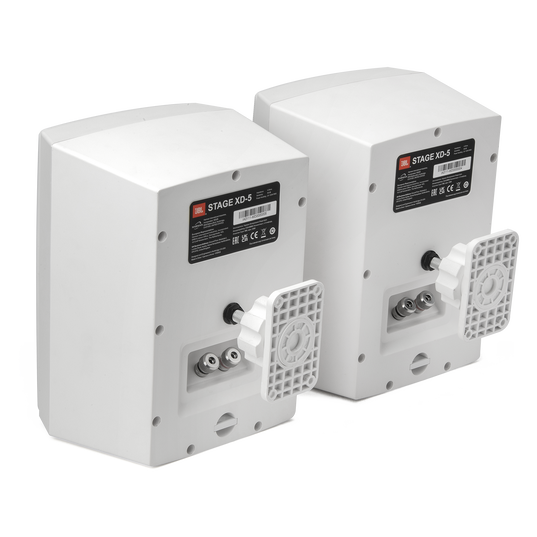

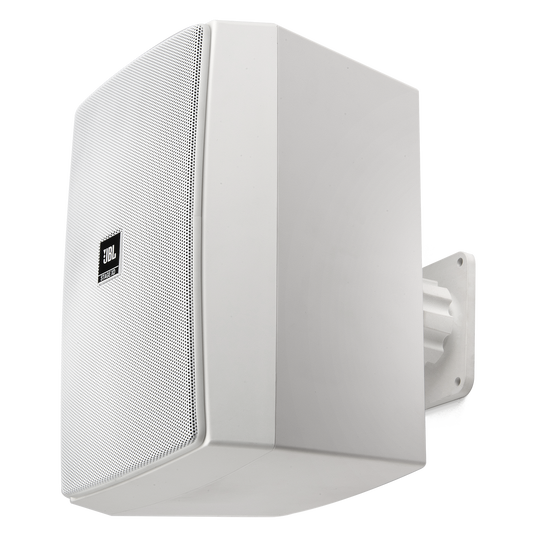

Included wall-mount bracket allows for easy installation and angle adjustment
Polypropylene Graphite Filled Cone Woofer
Zero bezel magnetically attached grilles
Rotatable logo for horizontal and vertical applications

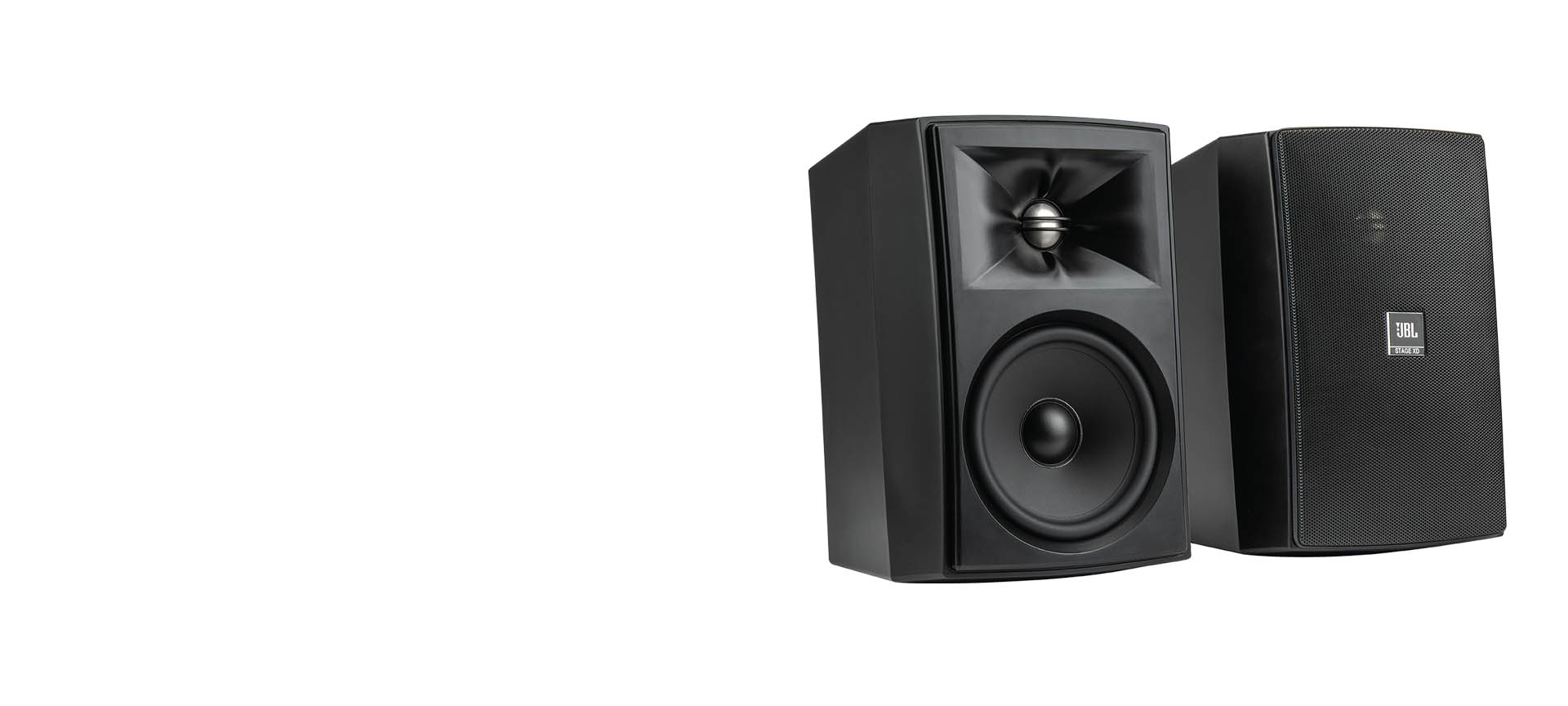

Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
품목 #
JBLXD5WHT
일반 사양
Product Type
2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
5.25" (130mm) Polypropylene Cone Woofer
Nominal Impedance
6 ohms
Sensitivity (2.83V@1m)
86dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
75Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
-31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD)
9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm)
Product Weight
2.3lbs (5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
12.6in (320mm) x 16.4in (416mm) X 10.1in (256mm)
Beauty Carton Weight
12.2lbs (5.5kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
13.4in (340mm) x 31.1in (788mm) X 17.0in (430mm)
Master Carton Weight
37.5lbs (17kg)
Master Carton Quantity
3pr
Click here for a complete list of all specs for this product
Spec Sheet (스팩시트(영어))
